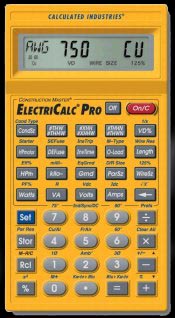

Electricalc Pro 2017

List Price: $99.99

Price: $95.00

Updatable to all future NEC revisions.
Work directly in and convert between Amps, Watts, Volts, Volt-Amps, kVA, kW, PF% and EFF% and DC Resistance
Calculate wire sizes per NEC; Copper or aluminum, 3Ø/1Ø, 60°C, 75°C, 90°C insulation ratings and 100% or 125% of ampacity. Adjust wire sizes for ambient temperatures other than 30°C and for more than three wires in a raceway
Integrated voltage drop solutions. Find minimum VD wire size, maximum Length for any given wire size, drop percentage, actual number and percentage of Volts dropped
Conduit sizing for 12 types of conduit. Find sizing of all common conduits for any combination for THW/THHW, XHH/XHHW and THHN/THWN wires. Plus, gives fill percentages, cross-sectional areas, remaining areas and more
Find Motor Full-Load Amps per Current NEC. Works in 1Ø and 3Ø with the new expanded tables for 3Ø induction (to 500 hp) synchronous (to 200 hp) and DC motors per NEC.
Calculates Fuse and Breaker Sizes. Solves fuse and breaker sizes per NEC
Parallel and derated wire sizing
Parallel Resistance and more!
